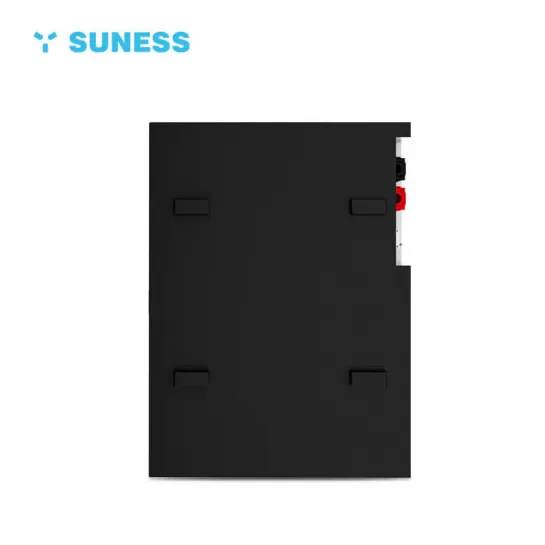

The 48V 200Ah LiFePO4 battery is a high-efficiency energy storage solution offering 95% Depth of Discharge (DOD) for increased usable capacity and over 8000 charge cycles for long-lasting performance. Built for compatibility with most solar inverters, it features integrated CAN and RS485 communication support for seamless system integration. Backed by free after-sale support, this battery ensures reliability, safety, and efficient energy management in solar and backup power applications.
| Model | EV-10.24N |
| Total Energy [kWh] | 10.24 |
| Capacity [Ah] | 200 |
| Nominal Voltage [V] | 51.2 |
| Voltage Range [M] | 48V-51.2V |
| MAX.Charge & Discharge Current[A] | 100 |
| Dimension[W×DxH,mm] | 830×610×194 |
| Net Weight [Kg] | 86 |
The lithium battery adopts floor-standing or wall-mounted installation design. This design is very flexible and can adapt to different installation sites and space requirements.
Lithium batteries have excellent safety performance. A series of protection mechanisms such as overvoltage protection, overcurrent protection, short circuit protection, and temperature protection are adopted to ensure that no accidents occur during use. In addition, lithium batteries also use high-quality flame-retardant materials and isolation designs to effectively reduce the risk of fire.
Lithium batteries are widely recognized for their highly reliable performance. They undergo strict quality control and testing to ensure stable performance and long life.
| Model | EV-5.12N | EV-10.24N | EV-15.36N |
| Total Energy [kWh] | 5.12 | 10.24 | 15.36 |
| Capacity [Ah] | 100 | 200 | 300 |
| Nominal Voltage [V] | 51.2 | 51.2 | 51.2 |
| Voltage Range [V] | 48-57.6 | 48-57.6 | 48-57.6 |
| MAX. Charge & Discharge Current [A] | 60 | 100 | 150 |
| Peak Charge & Discharge Current [A] (for 10 sec.) | 100 | 120 | 200 |
| Product Dimension(MM) | 660×430×185MM | 830×610×194MM | 905×470×250MM |
| Net Weight [Kg] | 44 | 86 | 120 |
| Scalable | 1~16 in parallel | ||
| Communication | CAN,RS485 | ||
| Communicated Inverter | GOODWE/Victron/SOFAR/DEYE/Growatt/SMA/felicity | ||
| Enclosure Protection Rating | IP21 | ||
| Charging Temp Range [°c] | 0~55 | ||
| Discharging Temp Range [℃] | -10 ~55 | ||
| Cycle Life | ≥8,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL | ||
| Warranty | 10 years | ||
| Certification | IEC62619,UN38.3,CE | ||
