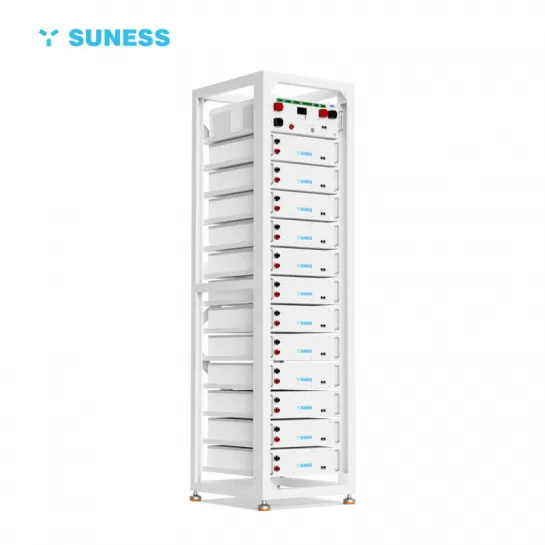

The iRack-HVS 60 is a high-capacity 61.44kWh rack-mounted LiFePO4 storage battery built with A+ grade cells, offering a nominal voltage of 614.4V (with a voltage range of 537.6V–691.2V) and a capacity of 100Ah. Engineered for durability and efficiency, it supports a maximum charge/discharge current of 50A and integrates a high-quality Battery Management System (BMS) for enhanced safety and performance. Measuring 570×615×2145mm and weighing 564kg, the system is designed for easy installation and supports parallel configuration, making it suitable for scalable energy storage needs. It also supports OEM/ODM customization and comes with dedicated after-sale support, offering a dependable solution for commercial and industrial applications.
| Model | iRack-HVS 60 |
| Total Energy [kWh] | 61.44 |
| Capacity [Ah] | 100 |
| Nominal Voltage [V] | 614.4 |
| Voltage Range [M] | 537.6V-691.2V |
| MAX.Charge & Discharge Current[A] | 50 |
| Dimension[W*D*H,mm] | 570*615*2145 |
| Net Weight [Kg] | 564 |
Our battery modules come equipped with a high-quality Built-In Battery Management System (BMS), ensuring comprehensive protection for the battery cells.
Our modular battery design allows for seamless scalability, enabling the integration of up to 12 units in parallel for larger storage systems.
| Models | iRack-HVS 25 | iRack-HVS 40 | iRack-HVS 60 | ||
| Cell Type | LFP | LFP | LFP | ||
| Total Energy | 25.6kWh | 40.96kWh | 61.44kWh | ||
| Number of Modules | 5 | 8 | 12 | ||
| Configuration | 1P80S | 1P128S | 1P192S | ||
| Nominal Capacity | 100Ah | 100Ah | 100Ah | ||
| Nominal Voltage | 256V | 409.6V | 614.4V | ||
| Operating Voltage Range | 224Vdc-288Vdc | 358.4Vdc-460.8Vdc | 537.6Vdc-691.2Vdc | ||
| Battery Max Continuous Charge/Discharge Power | 12.8kW | 20.48KW | 30.72kW | ||
| Dimension [W x D x H] | 540*640*1060mm | 570*615*1575mm | 570*615*2145mm | ||
| Net Weight | 277kg | 392kg | 564kg | ||
| Max. Charge Current | 50A | ||||
| Max. Discharge Current | 50A | ||||
| Communication | CAN.RS485 | ||||
| Enclosure Protection Rating | IP20 | ||||
| Altitude | ≤2000m | ||||
| Installation | Indoor | ||||
| Charging Temp Range | 0℃-55℃ | ||||
| Discharging Temp Range | -10℃-55℃ | ||||
| Working Humidity | 5%-95% | ||||
| Cycle Life | ≥8.000 Cycle@ 80% DOD/25℃/0.5C,60%EOL | ||||
| Communicated Inverter | Deye / MEGAREVO / GOODWE / ATESS / SINEXCEL | ||||
| Certification | IEC62619,UL1973 ,UN38.3,CE | ||||
