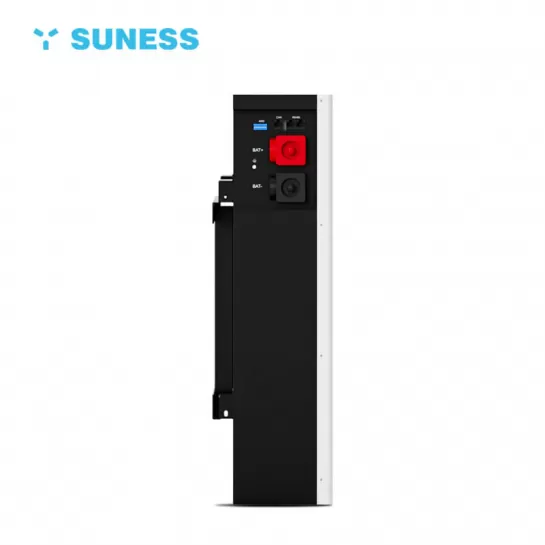

The 24V 200Ah LiFePO4 battery is designed for residential energy storage, delivering enhanced power with a 95% Depth of Discharge and reliable performance over 8000+ cycles. Engineered for seamless integration, it communicates effortlessly with a wide range of solar inverters and features advanced CAN and RS485 communication support. Backed by complimentary after-sale assistance, this battery offers a dependable and efficient solution for managing home energy needs.
| Model | EV-5.12M |
| Total Energy [kWh] | 5.12 |
| Capacity [Ah] | 200 |
| Nominal Voltage [V] | 25.6V |
| Voltage Range [V] | 24V-28.8V |
| MAX.Charge & Discharge Current[A] | 80 |
| Dimension[W×DxH,mm] | 660*430*185 |
| Net Weight [Kg] | 44 |
Our commitment to customer satisfaction extends beyond the purchase. Benefit from complimentary after-sales service and technical support to ensure the continued performance of your energy storage solution.
We've strategically established overseas warehouses to facilitate prompt and reliable delivery, ensuring that your home energy storage solution reaches you on time and in optimal condition.
| Model | EV-5.12M | EV-10.24N | EV-15.36N |
| Total Energy [kWh] | 5.12 | 10.24 | 15.36 |
| Capacity [Ah] | 200 | 200 | 300 |
| Nominal Voltage [V] | 25.6 | 51.2 | 51.2 |
| Voltage Range [V] | 24-28.8 | 48-57.6 | 48-57.6 |
| MAX. Charge & Discharge Current [A] | 80 | 100 | 150 |
| Peak Charge & Discharge Current [A] (for 10 sec.) | 150 | 120 | 200 |
| Product Dimension(MM) | 660×430×185MM | 830×610×194MM | 905×470×250MM |
| Net Weight [Kg] | 45 | 86 | 120 |
| Scalable | 1~16 in parallel | ||
| Communication | CAN,RS485 | ||
| Communicated Inverter | GOODWE/Victron/SOFAR/DEYE/Growatt/MEGAREVO/SRNE | ||
| Enclosure Protection Rating | IP21 | ||
| Charging Temp Range [°c] | 0~55 | ||
| Discharging Temp Range [℃] | -10 ~55 | ||
| Cycle Life | ≥8,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL | ||
| Warranty | 10 years | ||
| Certification | IEC62619,UN38.3,CE | ||
