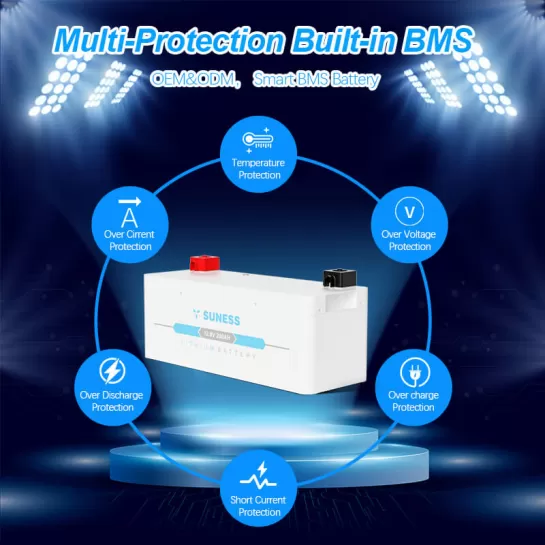

EV-2.56N Series（12V 200AH lithium Battery、6000 times cycle、5 years warranty）: Efficient storage, reliable power supply, peak shaving, and dependable performance define our advanced energy storage solution. Its flexible configuration adapts to your needs, while the Smart BMS ensures safety and efficiency. Embrace eco-friendly technology for a sustainable energy choice.
| Model | EV-2.56N |
| Total Energy [kWh] | 2.56 |
| Capacity [Ah] | 200 |
| Nominal Voltage [V] | 12.8 |
| Voltage Range [M] | 12-14.4 V |
| MAX.Charge & Discharge Current[A] | 100 |
| Dimension[W×DxH,mm] | 490*180*215 |
| Net Weight [Kg] | 22 |
With support for >90% Depth of Discharge (DOD), these lithium batteries offer greater usable capacity, making them ideal for applications requiring continuous power output.
Compared to alternatives like lead-acid batteries, lithium batteries exhibit a longer cycle life, enduring over 6,000 charge and discharge cycles for reliable performance over time.
Due to lithium battery low self-discharge rate, lithium batteries maintain high energy storage efficiency even during prolonged periods of inactivity. Choose a reliable energy solution that combines compact design, enduring performance, and rapid charging capabilities.
| Model | EV-2.56N |
| Total Energy [kWh] | 2.56 |
| Capacity [Ah] | 200 |
| Nominal Voltage [V] | 12.8 |
| Voltage Range [V] | 10.5-14.4 |
| MAX. Charge & Discharge Current [A] | 100 |
| Dimension[W×D×H,mm] | 490*180*215 |
| Net Weight [Kg] | 22 |
| Scalable | UP to 4 inseries and 6 in parallel |

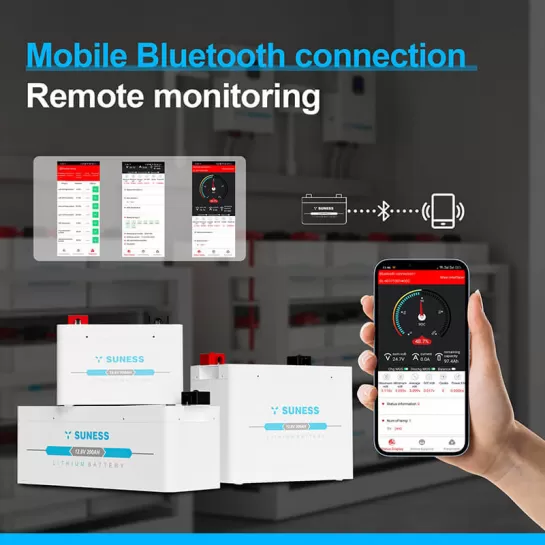

| Communication | Bluetooth |
| Enclosure Protection Rating | IP21 |
| Working Temperature Range[℃] | -10~50 |
| Cycle Life | >6000 Cycle@80%DOD/25℃/0.3C，60%EOL |
| Warranty | 5 years |
| Certification | IEC62619,UN38.3,CE |
