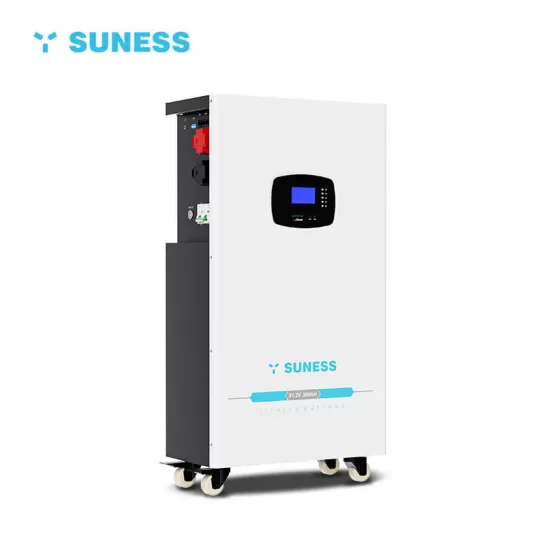

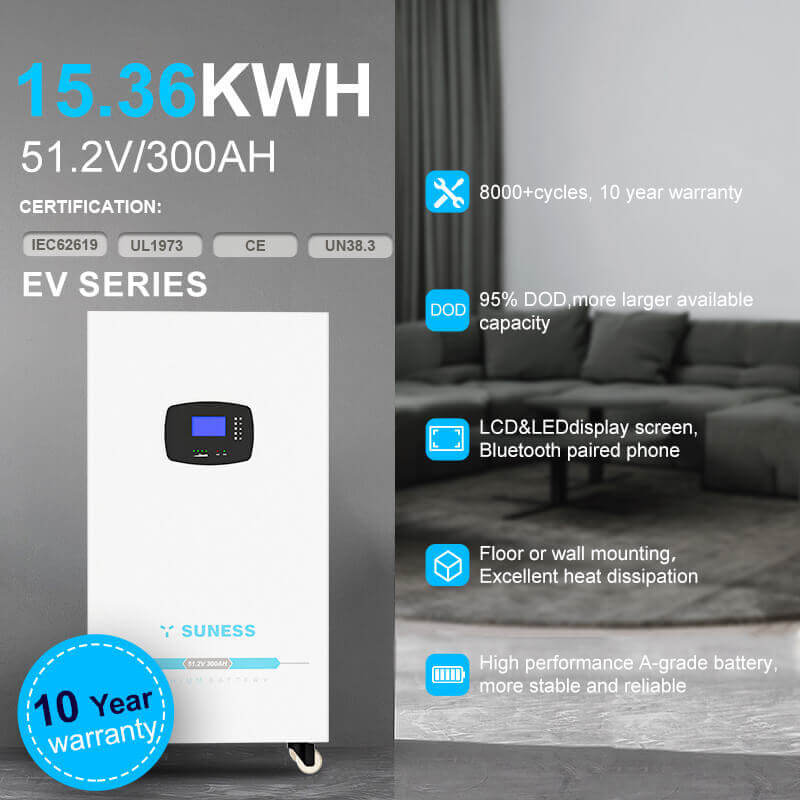

The EV-15.36N is a high-performance 48V 300Ah lithium LiFePO4 battery offering a total energy capacity of 15.36kWh and a nominal voltage of 51.2V (voltage range: 48V–51.2V). Built with A+ grade cells, it supports a maximum charge/discharge current of 150A and delivers over 8000 cycles at 95% Depth of Discharge (DOD), ensuring long-term reliability. With a 10-year warranty, it is compatible with most solar inverters and supports both CAN and RS485 communication protocols. Designed for flexibility, the battery can be mounted on the floor or wall and measures 905x470x250mm, weighing 120kg—offering a safe, efficient, and space-saving energy storage solution.
| Model | EV-15.36N |
| Total Energy [kWh] | 15.36 |
| Capacity [Ah] | 300 |
| Nominal Voltage [V] | 51.2 |
| Voltage Range [M] | 48V-51.2V |
| MAX.Charge & Discharge Current[A] | 150 |
| Dimension[W×DxH,mm] | 905*470*250 |
| Net Weight [Kg] | 120 |
We offer OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services, allowing us to customize our products to your specific requirements. This enables you to have a product that perfectly fits your needs and brand identity. Competitive Price: We strive to offer the most competitive prices in the market without compromising on quality. Our efficient manufacturing processes and strong supplier relationships enable us to provide cost-effective solutions to our customers.
| Model | EV-5.12N | EV-10.24N | EV-15.36N |
| Total Energy [kWh] | 5.12 | 10.24 | 15.36 |
| Capacity [Ah] | 100 | 200 | 300 |
| Nominal Voltage [V] | 51.2 | 51.2 | 51.2 |
| Voltage Range [V] | 48-57.6 | 48-57.6 | 48-57.6 |
| MAX. Charge & Discharge Current [A] | 60 | 100 | 150 |
| Peak Charge & Discharge Current [A] (for 10 sec.) | 100 | 120 | 200 |
| Product Dimension(MM) | 660×430×185MM | 830×610×194MM | 905×470×250MM |
| Net Weight [Kg] | 44 | 86 | 120 |
| Scalable | 1~16in parallel | ||
| Communication | CAN,RS485 | ||
| Communicated Inverter | GOODWE/Victron/SOFAR/DEYE/Growatt/MEGAREVO/SRNE | ||
| Enclosure Protection Rating | IP21 | ||
| Charging Temp Range [°c] | 0~55 | ||
| Discharging Temp Range [℃] | -10 ~55 | ||
| Cycle Life | ≥8,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL | ||
| Warranty | 10 years | ||
| Certification | IEC62619,UN38.3,CE | ||
